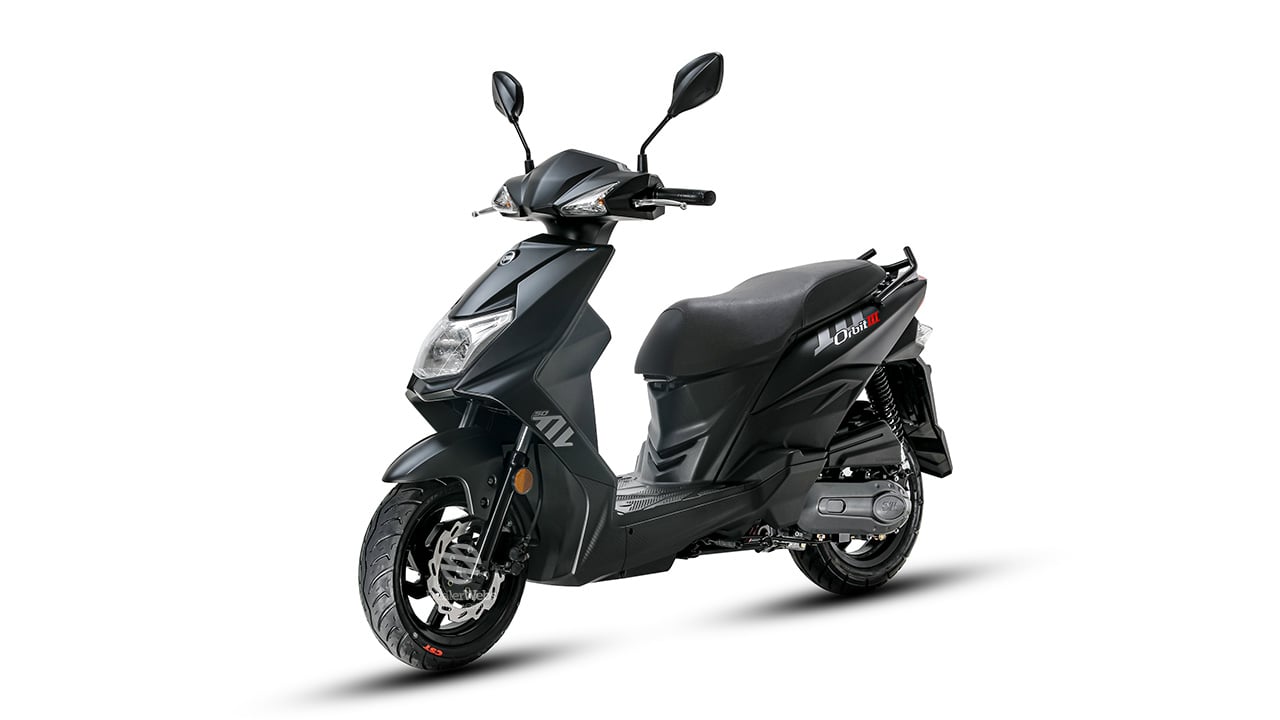

SYM ORBIT 125 E5

FRONT DISC BRAKES
Front Disc 226mm CBS Disk Braking system for an upgraded braking experience

SPACIOUS UNDER SEAT STORAGE
Luggage box fits one full-faced helmet

LED REAR LIGHTING
High visibility rear LED light cluster to ensure your safety, especially at night

FRONT LED HEADLIGHT
ORBIT III features a high visibility LED front headlamp

FAST CHARGE USB
There is an under seat USB Charge Point to keep your devices fully charged for the ride

Black

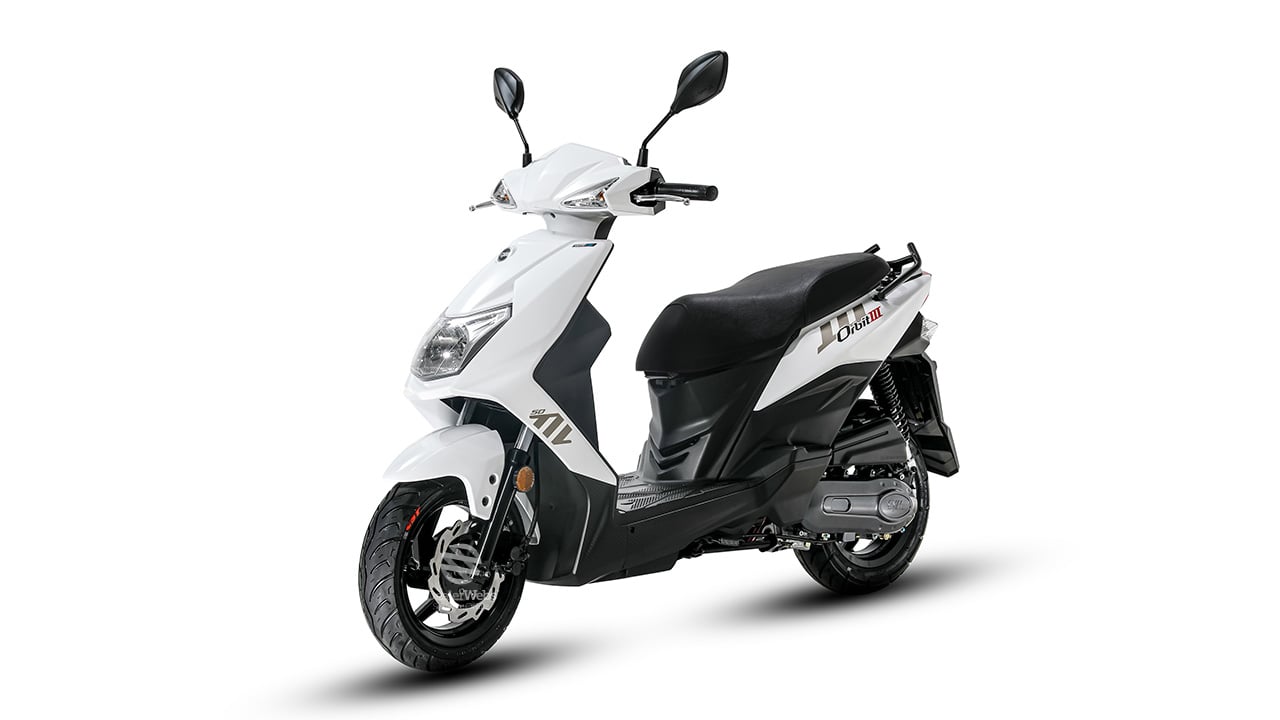

White

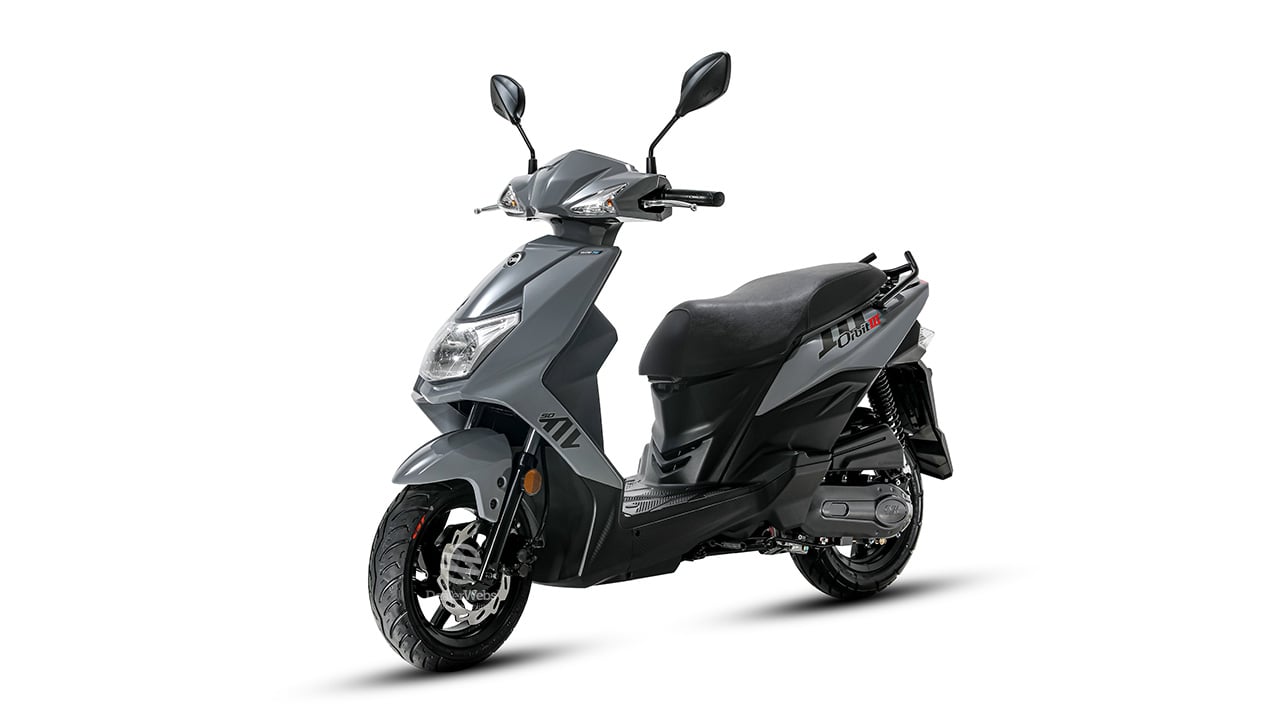

Grey

Blue

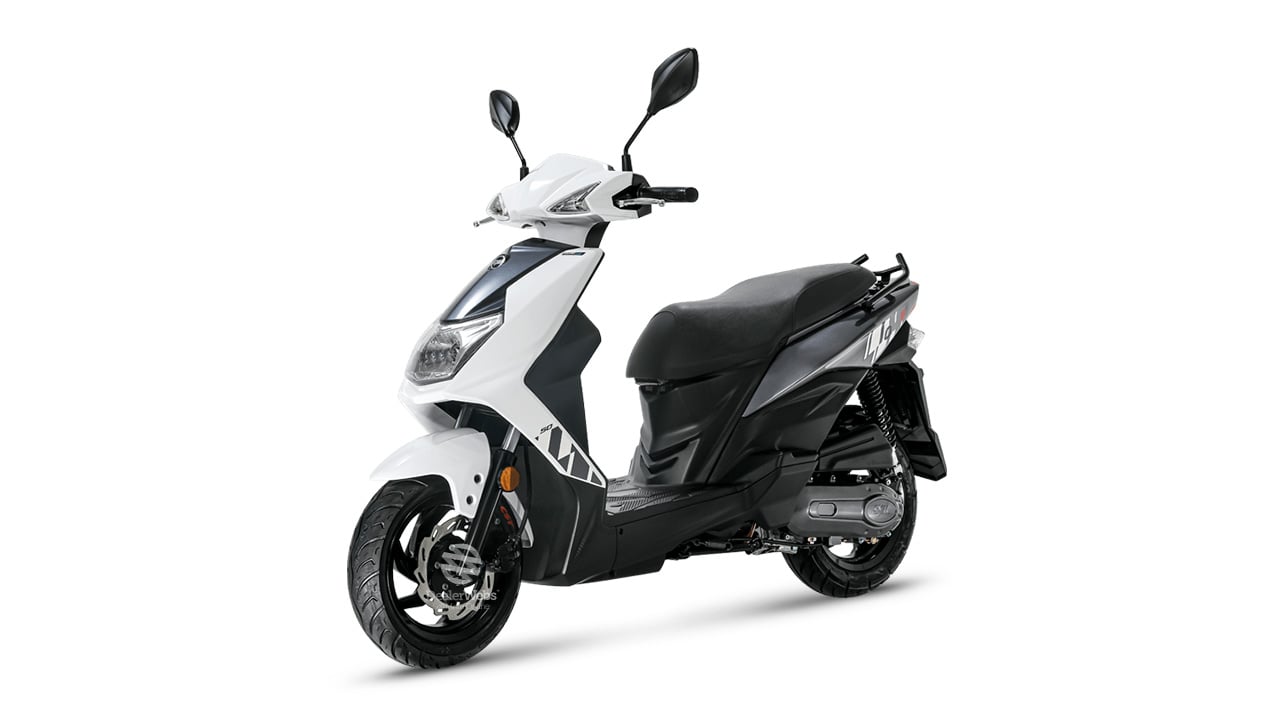

White & Grey

Engine

Engine Type	4-stroke, Single cylinder
Displacement	124.6cc
Rated Output	7.5kW/8500rpm
Fuel Supply	Electronic Fuel Injection
Exhaust System	Euro 4 Compliant
Certification	Euro 4
Gearbox	Automatic
Final Drive	Belt
Ignition	CDI
Cooling System	Air Cooled
Starting	Electric

Chassis

Frame	Pipe Under Bone
Front Suspension	Telescopic Forks
Front Brake	Disc
Rear Suspension	Unit Swing
Rear Brake	Drum
Front Rim Type	Cast
Rear Rim Type	Cast
Rear Rim Dimension	12 in
Front Tyre	110/70-12 47J
Rear Tyre	120/70-12 51J

Dimensions

Length	1915mm
Width	682mm
Height	1125mm
Permitted Total Weight	265kg
Unladen Weight	117kg
Usable Tank Volume	5.2 Ltr
Wheelbase	1320mm
